CE Low Noise / long lifetime Medical Air Mattress Pump for ozone generator

Quick Detail:

Description:

CINH Mini AC Medical Air Mattress Pump QBF-9530A Series use a unique linear motion design that has the capability of over 20,000 hours of continuous maintenance-free operation. They are compact, cool and highly reliable and inexpensive.

Features:

• Compact size
• Steady air outputs with low noise
• Very low vibration
• Low power consumption
• Economical

Applications:

intermittend pneumatic compression(medical)

compression therapy

ozone generator

aquarium

recovery system

fragrance diffuser

air bed

Atmospheric Detection

Dosing chemical material

air cloth

medical applications

industrial applications

Specifications:

Air Output: 120SCFH(60Lpm)

Pump Pressure: 4.5PSI(30kpa)

Power Requirement: AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz

Power Consumption: 35W

Pump Design: Double diaphragm, duckbill valves

Pump Body: Aluminium

Outlet & Inlet Dia: 9.8 mm

Electrical Connections: 1-ft(300mm)Insulated wire pair

Noise Level: 40db unconnected, connected operation will reduce db level

Dimension(LxWxH): 138x155x96 mm

Net Weight: 3kg

Performance Curve

Competitive Advantage:

long lifetime, high quality, 60L/M air flowrate and 30kpa pressure, AC Medical Air Mattress Pump

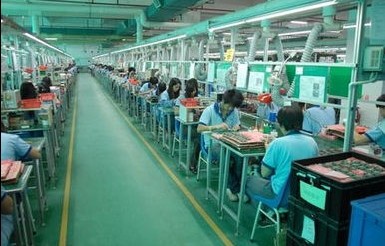

Medical Air Mattress Pump factory:

CINH Group Co., Limited is a group limited company, has been engaged in the research and development of micro air pump for more than fifteen years,  With our years of experience of designing and manufacture products, we have been a well-known group company in this industry in China. We have our own professional research institute and several industrial parks and branch  companies in different cities in China, the products have obtained vde, rohs, ce, cb, ul and gs and kema certificates.


We can design and manufacture products according to the customers' special demand. Our products have been exported to many countries, and the amount of products exported to other countries continues to grow, "CINH"  brand will go to worldwide.

Providing you the customer with high quality, professional products and satisfying service is always our attitude; sincerely for ever is our belief; our technology and experience in this industry is our power, we can make it to be reality.

We are fully aware that quality is the life of a company and has a strict quality control system iso from original material sourcing to finished products. We have a special qc team to execute the inspection method of aql level. Realizing that innovation is necessary for continuous development, we have built up an r&d team that is capable of introducing new product lines on a regular basis. This team is also responsible for monitoring the worldwide products market, analyzing consumer trends and making recommendations about how existing lines can be improved. we protect customers" trademarks, and we will never ship trademarked products to the third party or unrelated parties.we accept oem order.

Warmly welcome your inquiry. With high sense of responsibility and absolute sincerity, we welcome all kinds of business cooperation and shall satisfy all needs of our customers. It is our hope to promote, by joint efforts, both trade and friendship tour mutual advantage. Welcome to visit our company and our factory.
If you need more information please contact us at any time. We will be very glad to hear from you soon. Sincerely for ever.
