QBF-8 Low Power Electromagnetic Air diaphragm Pump For Fragrance Diffuser 18KPA 8L/M

Quick Detail:

8L/m air flowrate

18kpa air pressure

Double diaphragm, duckbill valves

Aluminum body

Continuous working day and night

lifetime more than 20,000hours

size:119x87x69 mm

weight:0.60 kg

Outlet & Inlet Dia: 0.3" (7.6 mm)

Description:

CINH AC Electromagnetic Air Pump QBF-8 Series use a unique linear motion design that has the capability of over 20,000 hours of continuous maintenance-free operation. They are compact, cool and highly reliable and inexpensive.

Features:

• Compact size
• Steady air outputs with low noise
• Very low vibration
• Low power consumption
• Economical

Applications:

intermittend pneumatic compression(medical)

compression therapy

ozone generator

aquarium

recovery system

fragrance diffuser

air bed

Atmospheric Detection

Dosing chemical material

air cloth

medical applications

industrial applications

Specifications:

Air Output: 18SCFH(8Lpm)

Pump Pressure: 2.7PSI(18kpa)

Power Requirement: AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz

Power Consumption: 7W

Pump Design: Double diaphragm, duckbill valves

Pump Body: Aluminium

Outlet & Inlet Dia: 0.3"(7.6mm)

Electrical Connections: 1-ft(300mm)Insulated wire pair

Noise Level: 40db unconnected, connected operation will reduce db level

Dimension(LxWxH): 119x87x69 mm

Net Weight: 0.60kgs

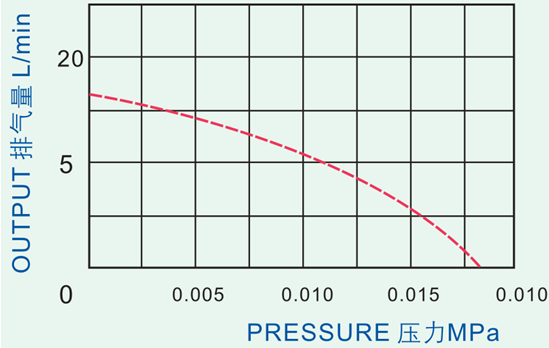

Performance Curve
